본 제품은 Magnetic Card,통장의 자기 Tape에
Data를 저장하거나 읽기 위하여 사용합니다.

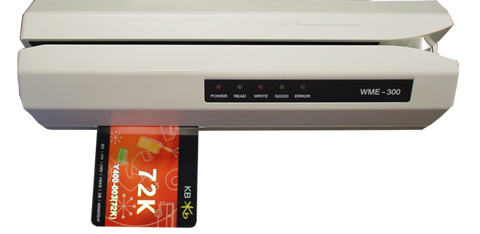

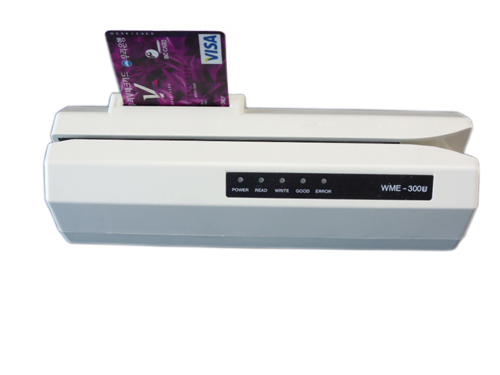

WME-300U

Magnetic Stripe Reader/Writer
Interface : USB

Ic Card :
  ISO-7816 1/2/3/4, PC/SC
  T=0,& T=1 Asynchronous
  Scratch IC contact with
  80,000 life time
Head 사양 : ISO-1,2,3 선택
5 LED Indicator & Buzzer
USB DLL File 제공
Head 수명 : 500,000 Pass
Demension :
  215(D) X 61(W) X 65(H)



WME-300S

Magnetic Stripe Reader/Writer
Interface : USB

Ic Card :
  ISO-7816 1/2/3/4, PC/SC
  T=0,& T=1 Asynchronous
  Scratch IC contact with
  80,000 life time
Head 사양 : ISO-1,2,3 선택
5 LED Indicator & Buzzer
USB DLL File 제공
Head 수명 : 500,000 Pass
Demension :
  215(D) X 61(W) X 65(H)



WMR-100 IC CARD

Magnetic Stripe Reader
Interface : USB
Ic Card :
  ISO-7816 1/2/3/4, PC/SC
  T=0,& T=1 Asynchronous
  Scratch IC contact with
  200,000 cycles

Head 사양 : ISO-3
3LED Indicator & Buzzer
USB DLL File 제공
Head 수명 : 700,000 Pass
Demension :
  140(D) X 39(W) X 53(H)



WIR-300 IC

Interface : RS-232C or USB(option)
Card Type : ISO Track 1,2,3
M/S Head 수명 : 500,000 Pass
2 LED Indicators
  (Ready, Good/Error)
IC Card : T=0 & T=1 protocol
  Landing Type IC Contact
Dimension:
   85 X 36 X 129 (mm)

Model Line-Up

Model 명 제품사양 형식
WIR-300 ISO-1,2,3
선택
Single Type



WSC -100 IC CARD

Interface : USB
Ic Card :
  ISO-7816 1/2/3/4, PC/SC
  T=0,& T=1 Asynchronous

1LED Indicator
Demension :
  70(D) X 87(W) X 23(H)
